Motor Or Diesel Power Soil Testing Drill Rigs For Rural Area Exploration

Name: Motor Or Diesel Power Soil Testing Drill Rigs For Rural Area Exploration
Brand: JINZHOUSHITAN
Price: 1 USD

Brand Name : JINZHOUSHITAN

Model Number : ST-200

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-12 days

Packaging Details : Standard Export Package

Condition : New

Type : Core Drilling Rig

Power Type : Diesel

Usage : Water Well

Voltage : 220V/380V

Power(W) : 12.1kw

Dimension(L*W*H) : 1580*1080*1200mm

Warranty : 6 months

Contact Now

Motor Or Diesel Power Soil Testing Drill Rigs For Rural Area Exploration

Product Description:

1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Core drilling, mining exploration, Or exploration;

3. Small hole diameter water well drilling;

4. Geothermal pipe-installing for heat pump;

5. Small-diameter hole foundation piling drilling.

Product Parameter:

Drill Rig Specification
Drilling depth	200m
Drilling Diameter	91mm,110mm,130mm,150mm,300mm
Drilling rod diameter	50mm
Drilling Angle	90°-75°
Dimensions(L×W×H)	1750×850×1300 (mm)
Weight	880kg/set
Swivel Head
Spindle Speed	115, 230, 505, 790, 1010 r/min
Spindle stroke	450mm
Spindle Dia.	Φ65mm (59x53 kelly drilling rod)
Upward displacement speed of drilling vertical spindle	0.05m/s
Downward displacement speed of drilling vertical spindle	0.067m/s
Spindle pull-down max	15KN
Spindle lifting capacity max	25KN
Vertical maximum output torque	1.5KN.m
Hoist
Max. Lifting capacity(single rope)	20KN.m
Lifting rotating speed	20; 40; 90; 168r/min
Hoisting drum linear velocity (two levels)	0.17; 0.35; 0.73; 1.5m/s
Drum Diameter	140mm
Wire rope diameter	9.3mm
Wire rope capability	40m
Gear Pump
Model	YBC-12/125
Rated pressure	12.5Mpa
Displacement	20ml/r
Rated Speed	2000r/min
Mud Pump
Type	BW-160
Displacement	160 L/min
Working pressure	1.3 Mpa
Stroke	85mm
Drive shaft speed	951 r/min
Drive power	5.88KW
Diameter of inlet pipe	45mm
Diameter of outlet pipe	38mm

Motor Or Diesel Power Soil Testing Drill Rigs For Rural Area Exploration

Product Tags:

dth drilling machine

water borehole drilling machine

China Motor Or Diesel Power Soil Testing Drill Rigs For Rural Area Exploration wholesale

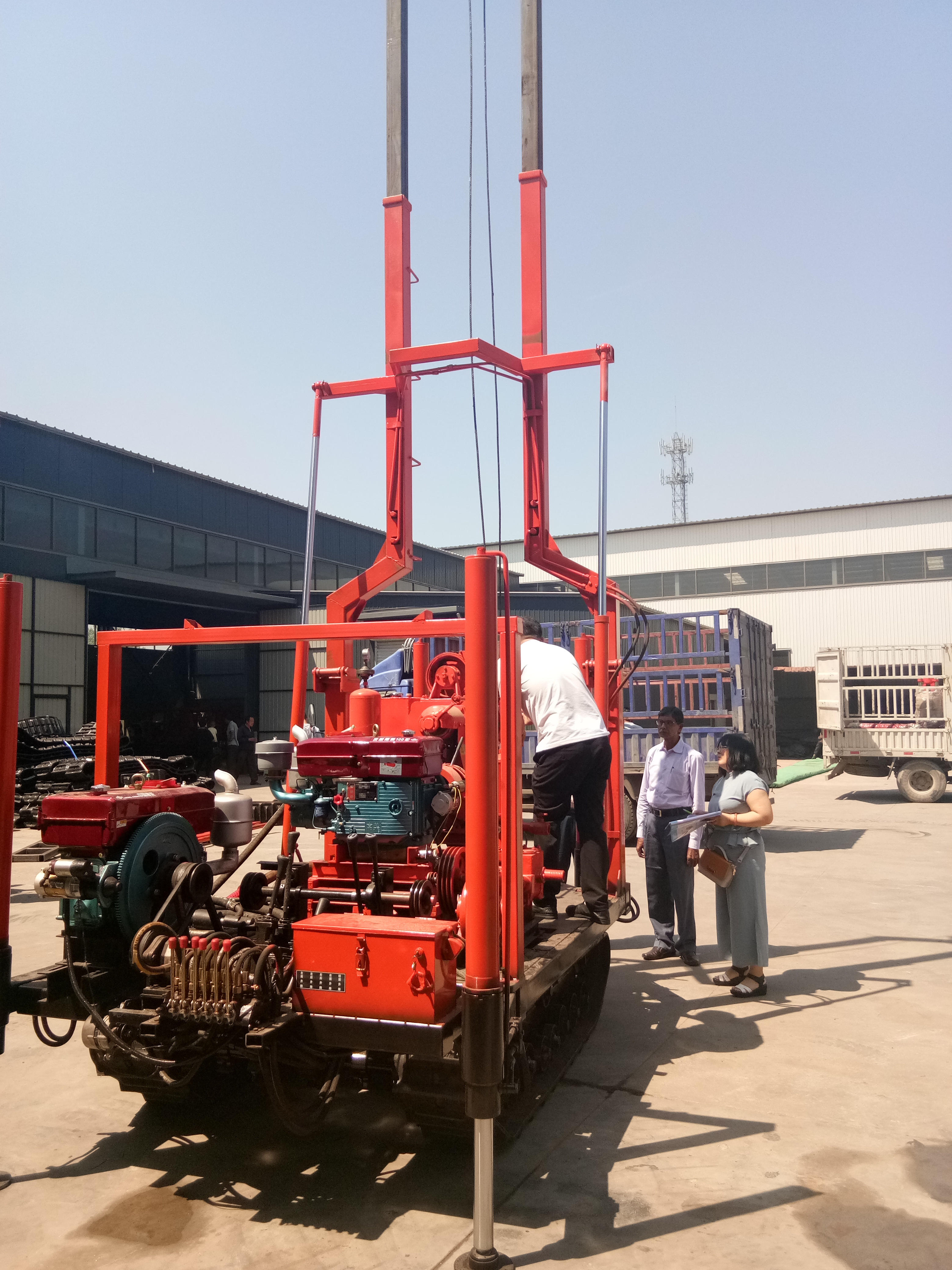

Motor Or Diesel Power Soil Testing Drill Rigs For Rural Area Exploration Images
