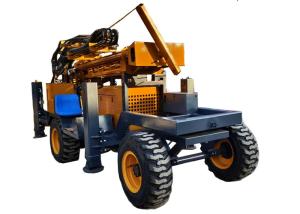

Product Description:
This drilling rig will get the job done efficiently and effectively.
The drilling rig has a drilling diameter of 105-305mm and a maximum depth of 200 meters. It is easy to operate, has strong performance, and has extremely low maintenance costs. It is suitable for a wide range of formations.
The drilling rig is suitable for high-rise buildings, bridges, geological mines, ports, dam foundations, water well construction, and complex ground source heat pump drilling construction.
Features:
- Product Name: Water Well Drilling Rig
- Drilling Diameter: 105-305mm
- Maximum Turning Torque: 5900
- Lifting Speed: 20m/min
- Climbing Degree: 30
- Engine: Xidong65KW
This Drilling Rig Equipment is perfect for Agricultural Water Well Drilling. With a drilling diameter of 105-305mm, it has a maximum turning torque of 5900 and a lifting speed of 20m/min. Its climbing degree is 30, and it is powered by a Xidong65KW engine. This Homemade Drilling Rig is a reliable and efficient tool for your water well drilling needs.
Technical Parameters:
| Product Name | Water Well Drilling Rig |
| Climbing Degree | 30 |
| High Leg Travel | 1.35m |
| Drilling Method | Water Mud /Air Compressor |
| Fast Forward Speed | 40m/min |
| Overall Dimension | 3.6m×1.8m×2.3m |
| Drilling Depth | 200m |
| Lifting Speed | 20m/min |
| Walking Speed | 2.5km/h |
| Engine | Xidong65KW |
| Drill Rod Length | 3m |
Applications:
One of the key features of the Shitan ST200 trailer type drilling rig is its adaptability to different conditions. It is designed to drill through both loose layers and bedrock, making it ideal for a wide range of soil types. Additionally, the drilling rod measures Φ76mm, which is suitable for most drilling applications.
Whether you need to drill a well for irrigation, water supply, or geothermal heating, the Shitan ST200 trailer type drilling rig has you covered. It is capable of drilling to depths of up to 200 meters, ensuring that you can access the water or other resources you need no matter where you are.
Another benefit of the Shitan ST200 trailer type drilling rig is its ease of use. It comes equipped with a small auxiliary winch that has a lifting force of 1.2T, making it easy to move and position the rig as needed. The rig also has a maximum rotation speed of 85/170r/min, which helps to speed up the drilling process.
Due to its high-quality construction and impressive capabilities, the Shitan ST200 trailer type drilling rig is an ideal choice for a variety of product application occasions and scenarios. Whether you are a professional drilling contractor or a DIY enthusiast, this rig is sure to meet your needs. And with its ISO certification and customizable pricing options, you can be confident that you are getting a top-quality product at a fair price.
So if you need a reliable, adaptable, and easy-to-use hydraulic water well drilling rig, look no further than the Shitan ST200 trailer type drilling rig. With its walking speed of 2.5km/h and supply ability of up to 2000 sets per year, you can be sure that this rig is up to any task you throw its way.
Order your Shitan ST200 trailer type drilling rig today and start enjoying the benefits of efficient, effective drilling!

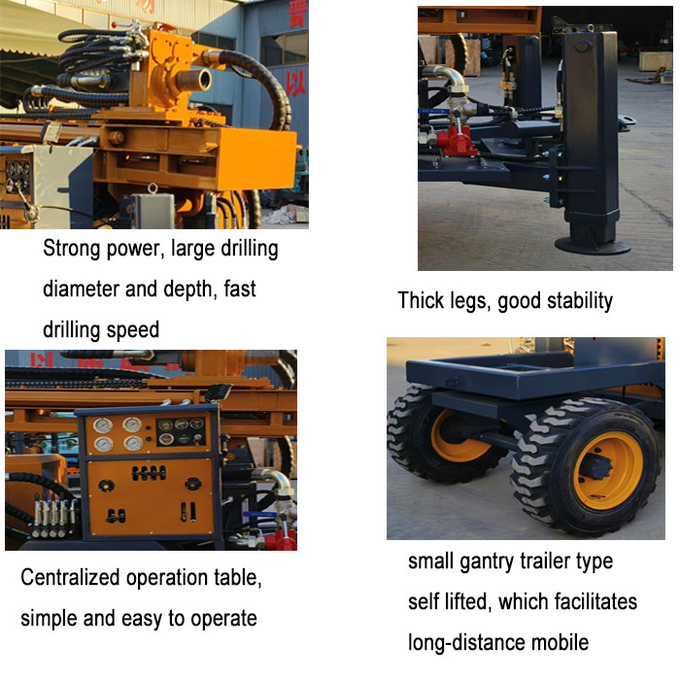

Detail Display
Main accessories
Packing and Shipping
