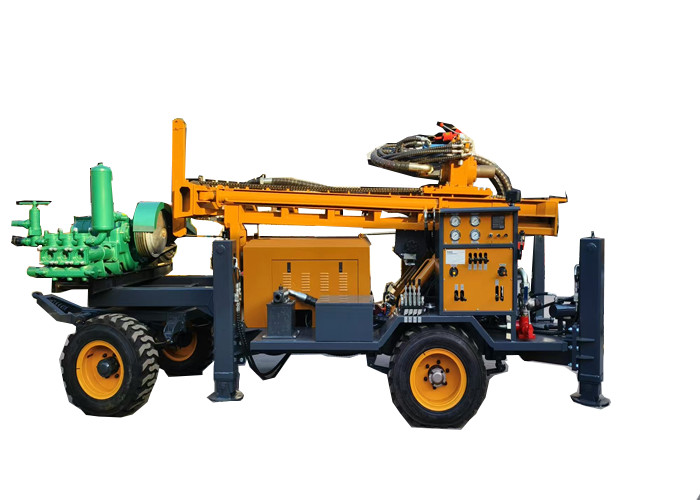

High Leg Water And Gas Dual Purpose Drilling Rig Equipped With Tires / Track

Name: High Leg Water And Gas Dual Purpose Drilling Rig Equipped With Tires Track
Brand: SHITAN
Price: 1 USD

China High Leg Water And Gas Dual Purpose Drilling Rig Equipped With Tires / Track wholesale

Brand Name : SHITAN

Model Number : ST-400

Certification : ISO,CE

Place of Origin : China

MOQ : 1SET

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 1000set

Delivery Time : 5-8 workday

Packaging Details : Wooden Box

Adaptive conditions : Yuchai 92KW

Gas consumption : 16-55m³/min

Working wind pressure : 1.25-3.5Mpa

Walking speed : 2.5km/h

Drill pipe length : 6m

Drill pipe diameter : 89mm/102mm/114mm

Drilling Depth : 150-400m

Origin : Hebei, China

Contact Now

ST400 Pneumatic Drill

A Model of Technological Innovation and Stability

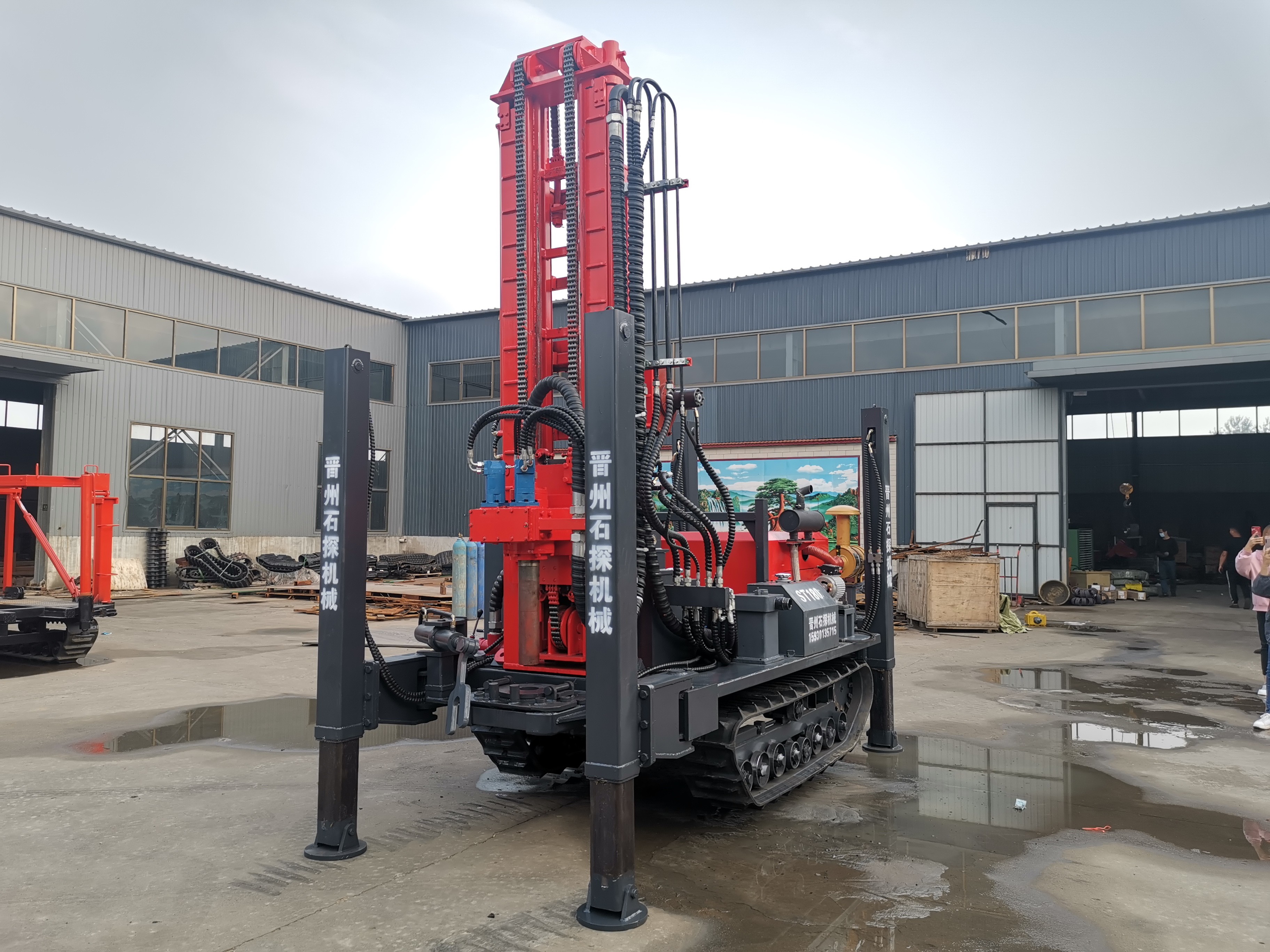

The ST400S crawler-type water well drilling rig integrates top-drive hydraulic rotation, down-the-hole hammer, and mud drilling technologies, offering diverse drilling methods adaptable to all formations—from loose layers to bedrock. With a user-friendly console, the rig can be operated by just 1-2 people, significantly reducing labor requirements.

Advantages

1. Powerful & Reliable Performance

✅ 93kW Yuchai Diesel Engine – Provides robust, continuous power for deep drilling (up to 400m) in remote or off-grid locations.

✅ Hydraulic Top Drive System – Ensures smooth rotation and propulsion, enhancing drilling speed and precision.

2. Flexible Drilling Options

✅ 3-in-1 Drilling Methods – Switch seamlessly between:

DTH Hammer (for hard rock)

Mud Drilling (for unstable formations)

Rotary Drilling (for general-purpose use).

Technical parameters

Drilling Hole Diameter	105-305mm
Drill pipe diameter	89mm/102mm
Engine	Six cylinder engine Yuchai 92KW
Drilling method	Hydraulic rotation and propulsion or Mud drilling
Weight	9T
Overall dimension	5.6m×2m×2.5m
Fast forward speed	40m-min
Use	Water Wells (agricultural, industrial, or domestic)

Transportation method

Ships within2-5business days
International shipping available
Shipping cost varies based on location
