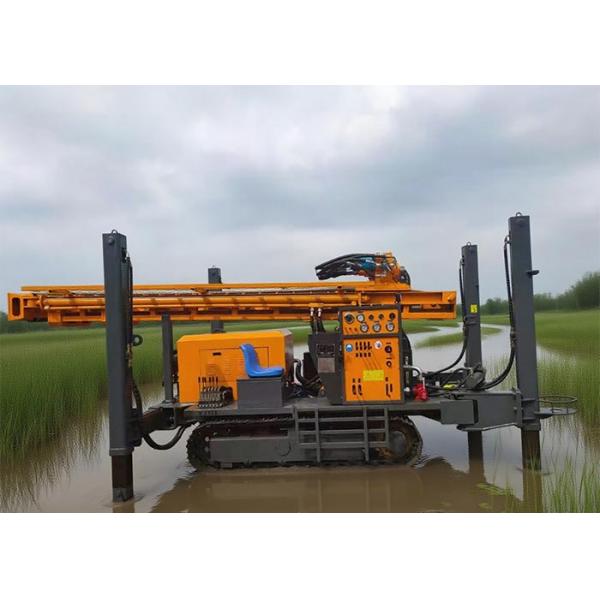

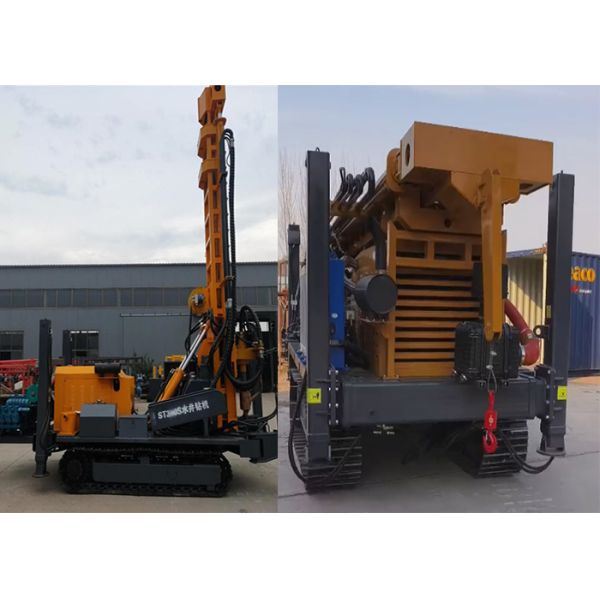

Yellow Color ST-300 Rock Drilling Equipment DTH Mud Dual Method

Deep Hole Water Well Drill Rig

This drill rig is designed for complex working conditions, easily navigating both loose formations and hard bedrock. It utilizes top hydraulic rotary propulsion technology and can be equipped with an optional down-the-hole hammer for efficient impact crushing, or mud drilling to address unstable hole walls. Its exceptional 300-meter drilling depth and 105-305 mm hole diameter range meet diverse needs, including agricultural irrigation and industrial water use. Equipped with a robust 22-ton pull-out force, it effectively handles stuck drills, ensuring safe and efficient operations.

Deep Hole Water Well Drill Rig Advantages:

1. Suitable for all terrains: Designed for both loose and hard bedrock formations, it can handle complex geologies.
2. High versatility: With a 30° gradeability, it easily handles rugged mountain construction sites.
3. Stable operating pressure: A wide operating pressure range of 1.25-3.5 MPa allows for optimal operation in diverse working conditions.
4. Reliable power source: Equipped with a renowned Yuchai 78kW engine, it delivers powerful and stable power.
5. Reinforced rod: Utilizes an 89mm diameter drill rod for superior rigidity, long life, and torsional resistance.
6. High air volume support: With an air consumption of 16-55 m³/min, it's the perfect match for large air compressor

Deep Hole Water Well Drill RigTechnological Data:
